CPD-10 · 1 t
Elektro-Gabelstapler 1 t
Four-wheel, 1.0 t. The default small warehouse truck: stable enough for a 1,200 mm pallet at 3 m, still narrow enough for racking aisles.
Compare CPD-15 vs CPD-10
CPD-15 · Elektro-Gabelstapler
CPD-15 — 1.5 t Elektro-Gabelstapler
Four-wheel, 1.5 t. The most common single unit in the range. Handles a loaded euro pallet at 4.5 m without the tail becoming twitchy.
1.5 t
Nenntragfähigkeit
3000 mm
Hubhöhe
Electric
Antriebsart

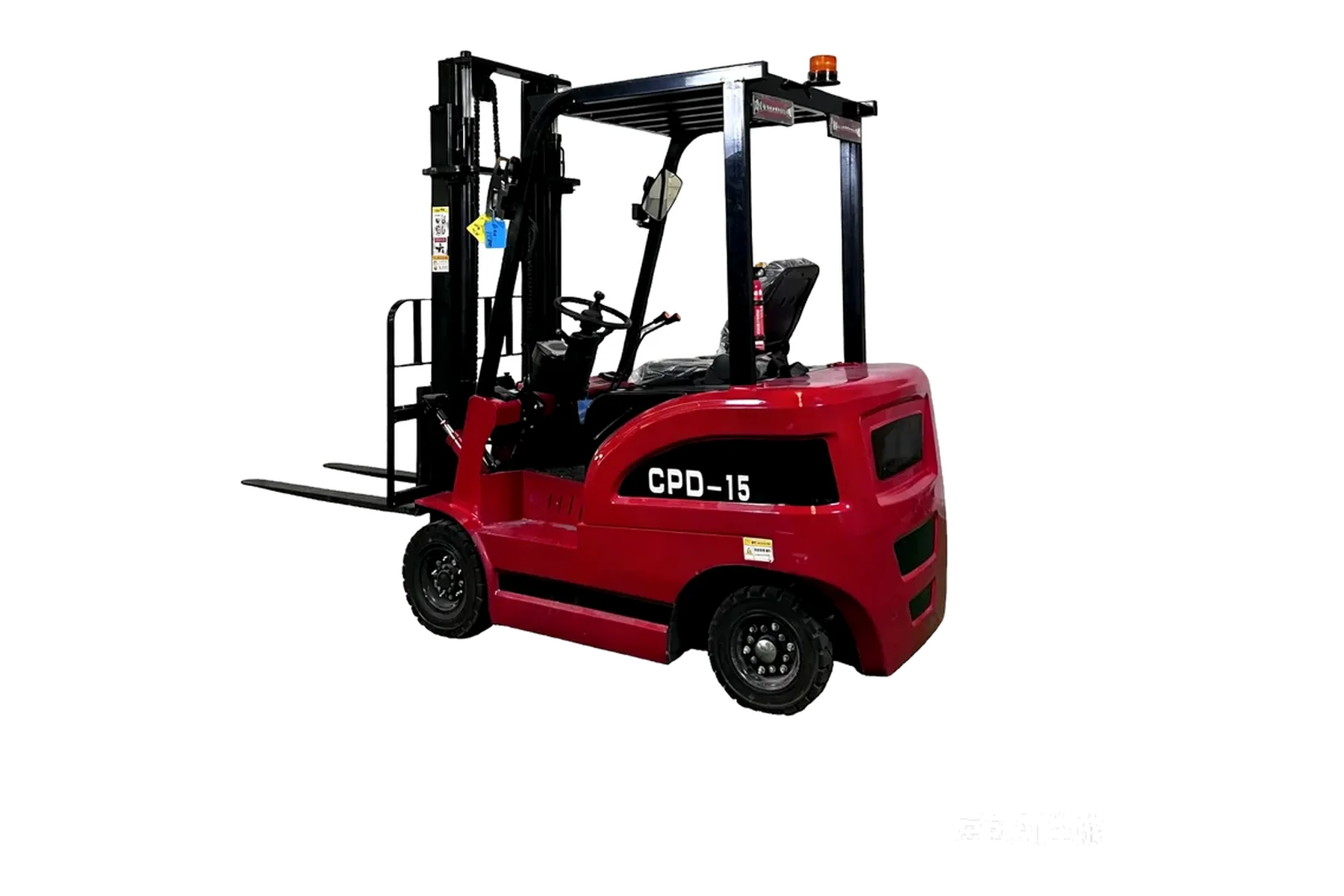

CPD-15 — im eigenen Werk fotografiert. Serienausführung.
Fotos dieser Maschine
Taken on our line and in the showroom. Nothing here is a render. Ask for current photographs and video of the exact unit and configuration before you place the order.
Technische Daten
| Modell | CPD-15 |
|---|---|
| Antriebsart | Electric |
| Nenntragfähigkeit | 1.5 t |
| Hubhöhe | 3000 mm |
| Spannung | 60 V |
|---|---|
| Laufzeit pro Ladung | 4–5 h |
| Ladezeit | 3–4 h |
| Steigfähigkeit | 10–15 ° |
Jede Angabe auf dieser Seite stammt aus dem Werksdatenblatt dieses Modells. Nichts ist geschätzt.
Was nicht in dieser Tabelle steht, wird schriftlich angeboten statt angenommen. Fordern Sie das Datenblatt der genau gekauften Ausführung an.
Wofür der CPD-15 gekauft wird
Four-wheel, 1.5 t. The most common single unit in the range. Handles a loaded euro pallet at 4.5 m without the tail becoming twitchy.
If the load is consistently heavier than 1.5 t, the next frame up carries the same mast and fork family, so the attachment and spare-parts stock do not have to change. If the load is lighter but the access is the constraint, the frame below is the one that fits through the door — capacity is rarely the only variable.
Die Größe darüber und darunter
CPD-15S · 1.5 t
Elektro-Gabelstapler 1.5 t
Same capacity as CPD-15, different body. Bought when a fleet wants a visual distinction between two duty areas, or when the operator prefers the shorter counterweight.
Compare CPD-15 vs CPD-15SVerschleißteile für CPD-15
The parts that fail first on this class, with the interval we see in the field.
Kundenrückmeldung
We publish feedback only with the buyer's permission and only when it is attributable — no anonymous quotes. If you would like to speak to someone running this class of machine, ask for a reference and we will arrange the call with their consent.
Angebot für CPD-15
Send the load, the lift height and the destination port. You get the model, the mast, the attachment and a written price.
