1200EV · 1200 kg
Electric Wheel Loader 1200 kg
1,200 kg. The volume electric loader. Bought for yards that run a fixed route and can charge at the same point every shift.
Compare 06EV vs 1200EV
06EV · Electric Wheel Loader
06EV — 400 kg Electric Wheel Loader
400 kg, lithium iron phosphate. The entry model: replaces a diesel skid steer inside a shed where exhaust is not acceptable.
400 kg
Capacity
2094mm
Turning radius

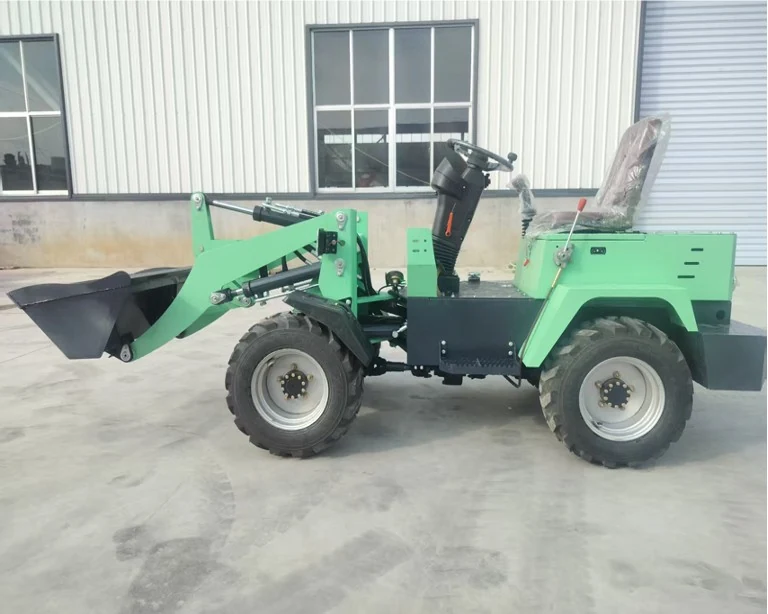

06EV — factory photograph of the actual unit.
Specification
| Model | 06EV |
|---|---|
| Standard designation | WL400EV |
| Rated capacity | 400kg |
| Bucket capacity | 0.1m³ |
| Dump height | 1700mm |
| Reach at full height | 548mm |
| Operating weight | 854kg |
| Drive motor | 3 kW |
| Hydraulic motor | 3 kW |
| Battery chemistry | LiFePO4 (lithium iron phosphate) |
| Battery capacity | 9kwh |
| Battery voltage | 60 V |
| Runtime per charge | 6-8h |
| Charger | 60 V 30 Ah |
| Charger input | 220V |
| Charge time | 5h |
| Transmission | Full-time 4WD, motor-driven transmission |
| Gear ranges | 4 electronic ranges, 1 forward / 1 reverse, with transport range |
| Axle | 212 axle, oil brake |
| Max speed | 15km/h |
| Cycle time (lift–lower–tip) | 9s |
| Tyres | 23*8.5-12 |
| Turning radius | 2094mm |
| Ground clearance | 160mm |
| Wheelbase | 1335mm |
| Track width | 920mm |
| Steering angle | 30° |
| Dimensions (L × W × H) | 2945*1100*1175 |
Figures are the standard build. Mast, fork length, attachment, battery and paint are fixed at order; anything not on this table is quoted rather than assumed.
What 06EV is bought for
400 kg, lithium iron phosphate. The entry model: replaces a diesel skid steer inside a shed where exhaust is not acceptable.
If the load is consistently heavier than 400 kg, the next frame up carries the same mast and fork family, so the attachment and spare-parts stock do not have to change. If the load is lighter but the access is the constraint, the frame below is the one that fits through the door — capacity is rarely the only variable.
The size above and below
Wear parts for 06EV
The parts that fail first on this class, with the interval we see in the field.
Customer feedback
We publish feedback only with the buyer's permission and only when it is attributable — no anonymous quotes. If you would like to speak to someone running this class of machine, ask for a reference and we will arrange the call with their consent.
Quote for 06EV
Send the load, the lift height and the destination port. You get the model, the mast, the attachment and a written price.
