06EV · 400 kg
Electric Wheel Loader 400 kg
400 kg, lithium iron phosphate. The entry model: replaces a diesel skid steer inside a shed where exhaust is not acceptable.
Compare 1200EV vs 06EV
1200EV · Electric Wheel Loader

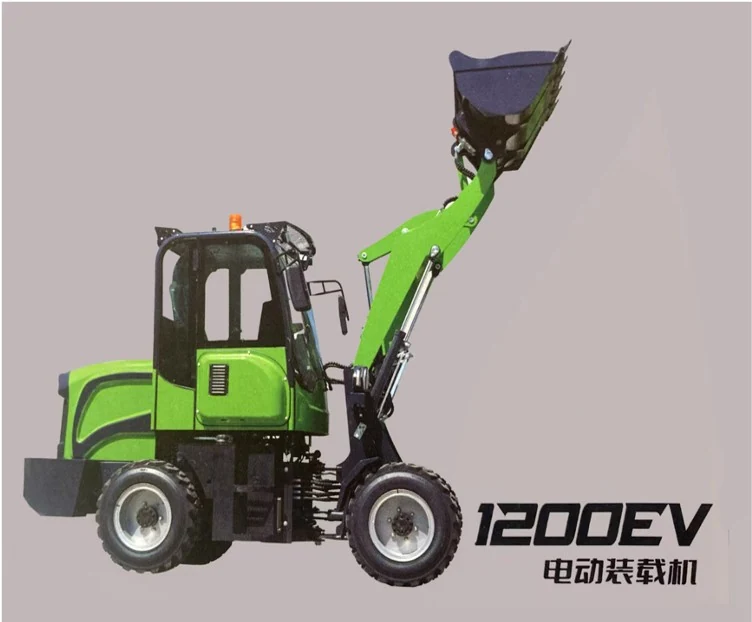

1200EV — 1200 kg Electric Wheel Loader
1,200 kg. The volume electric loader. Bought for yards that run a fixed route and can charge at the same point every shift.
1200 kg
Capacity
2464mm
Turning radius

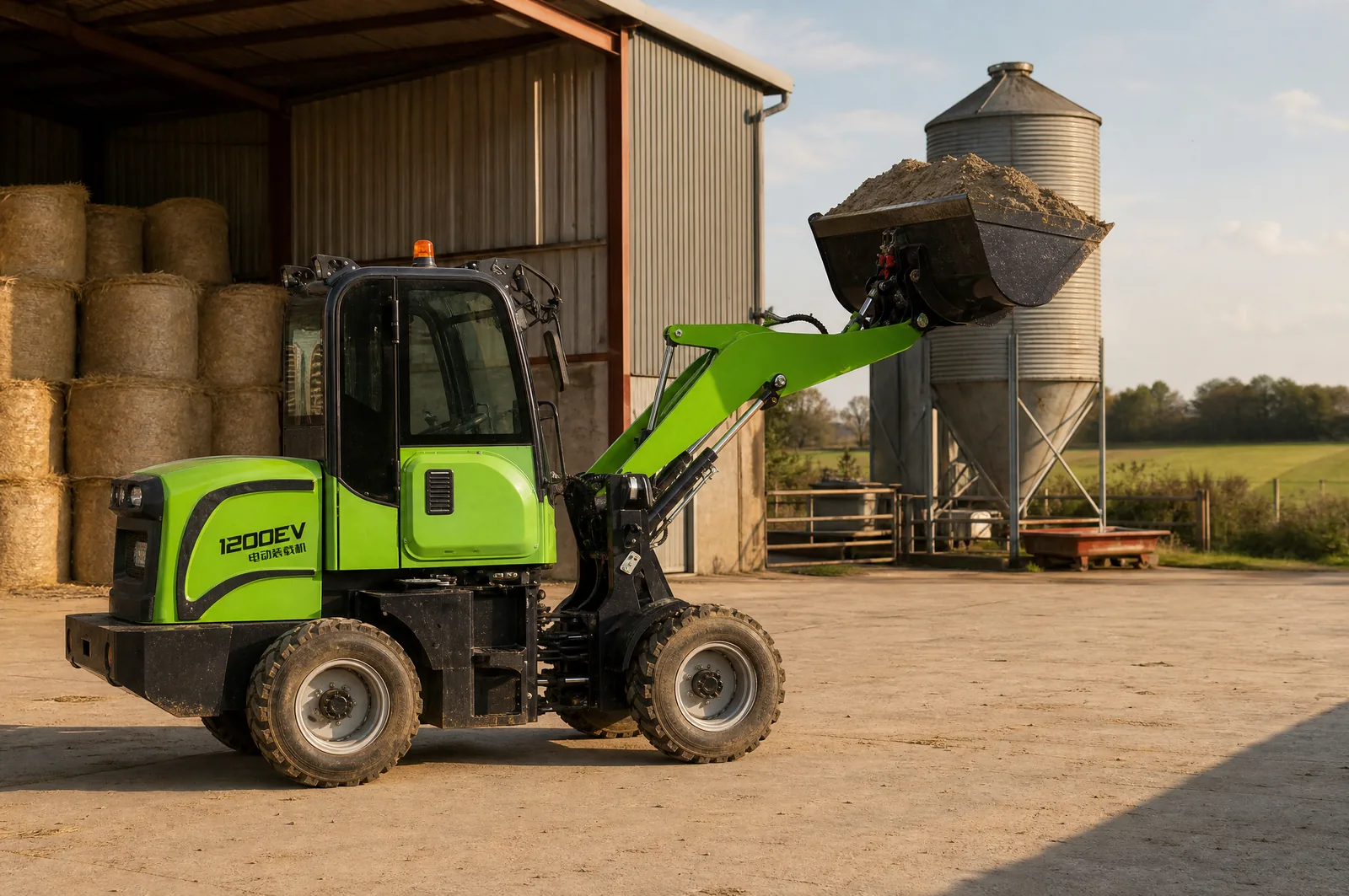

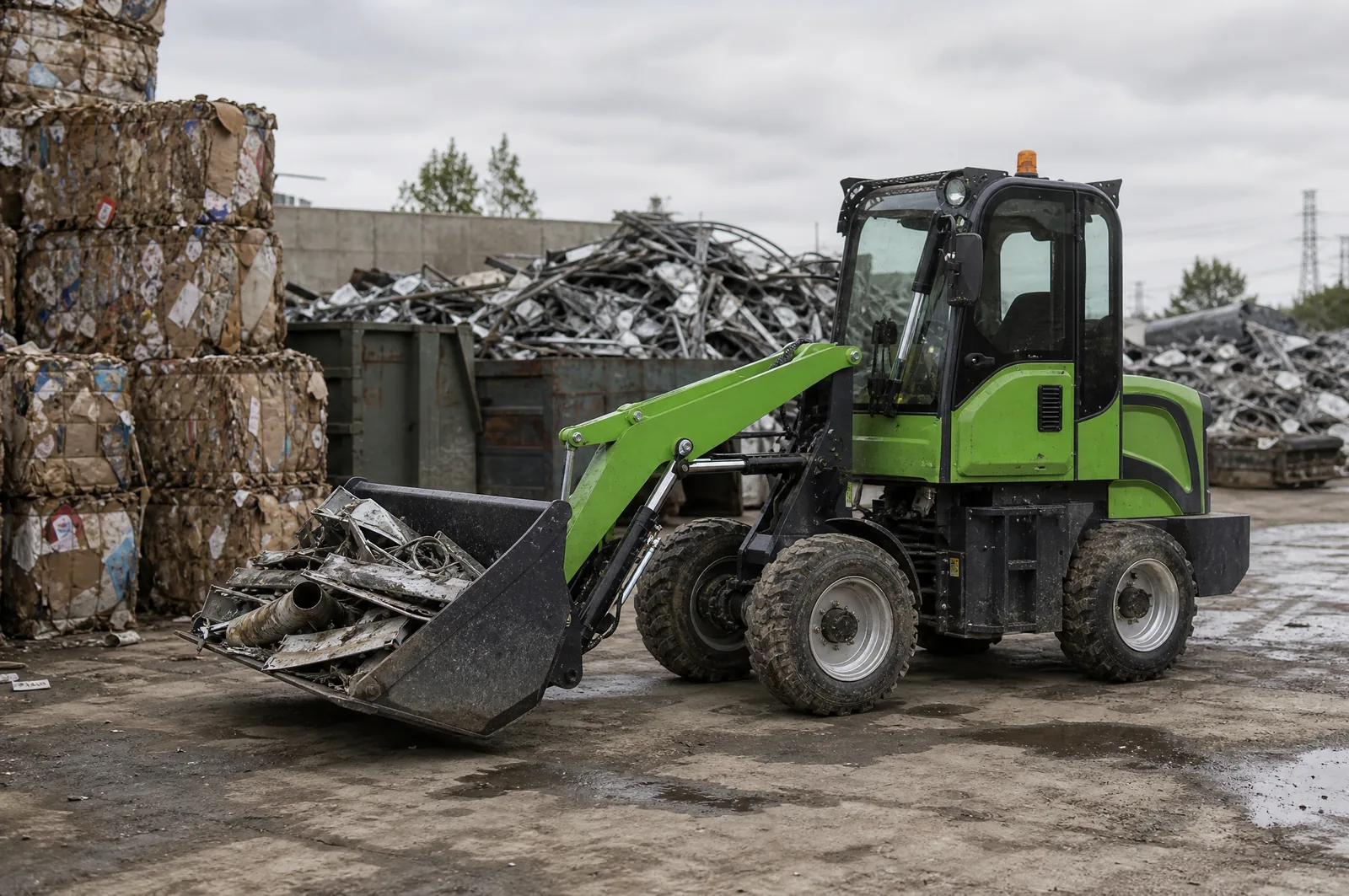

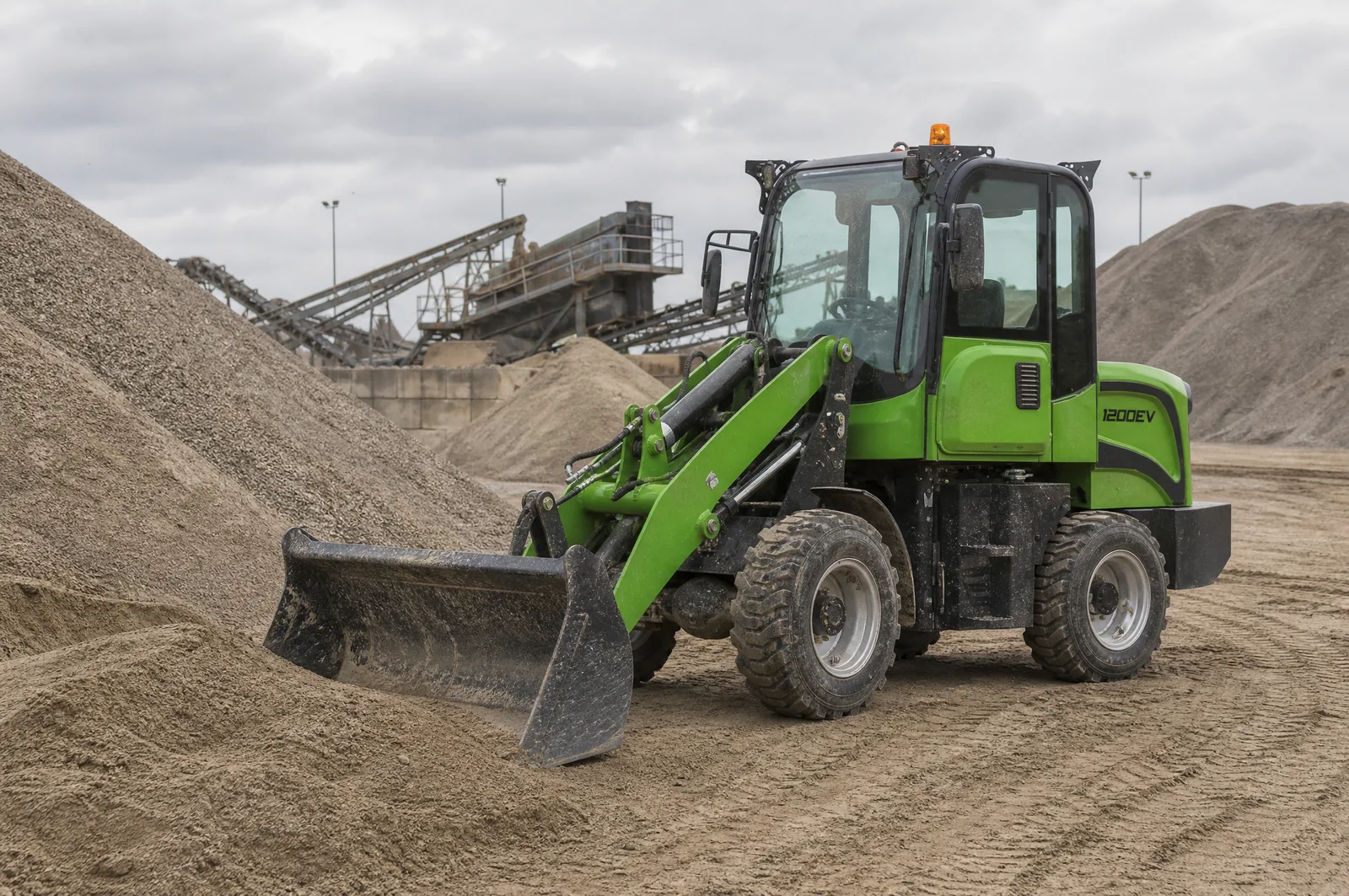

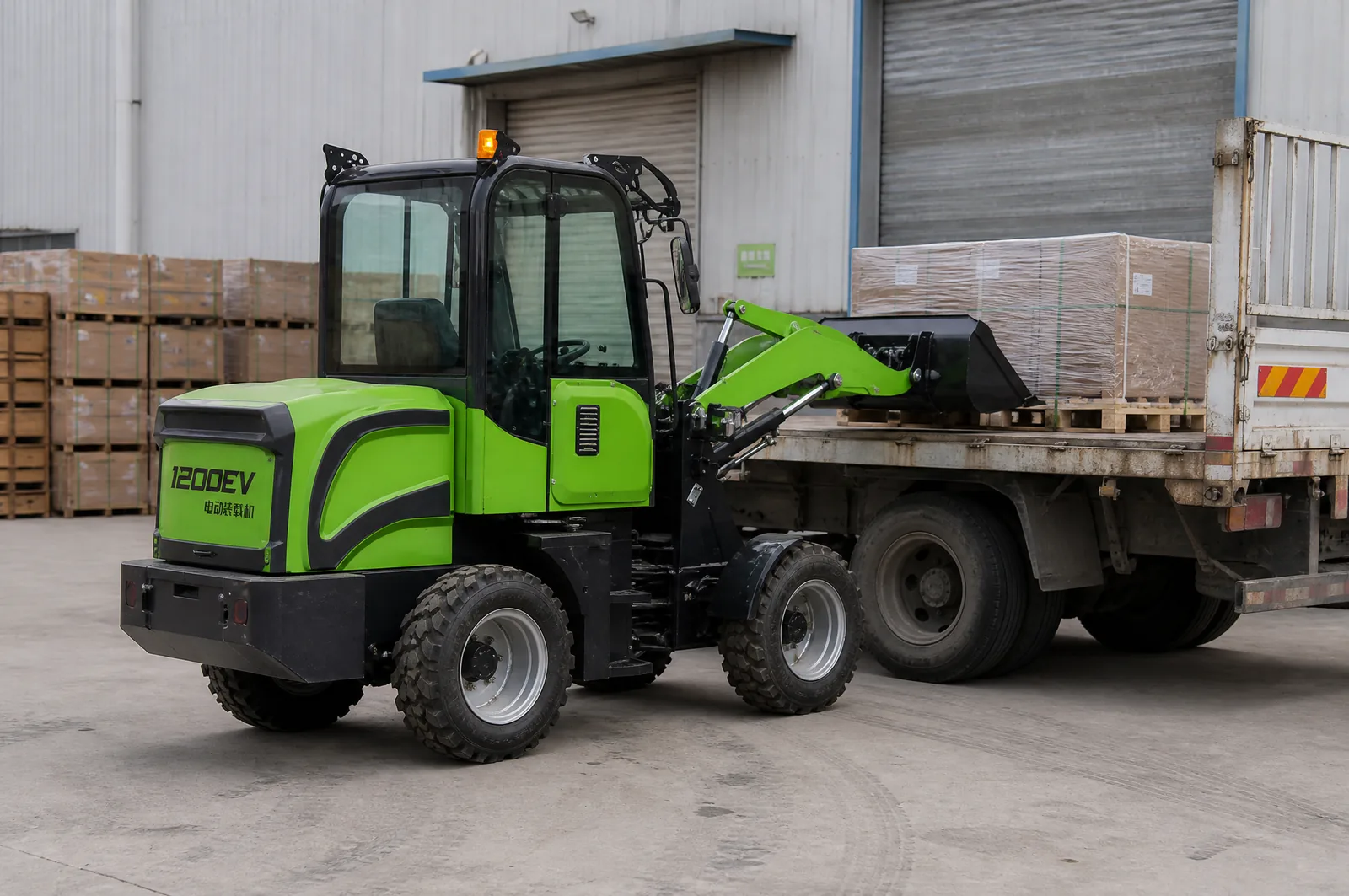

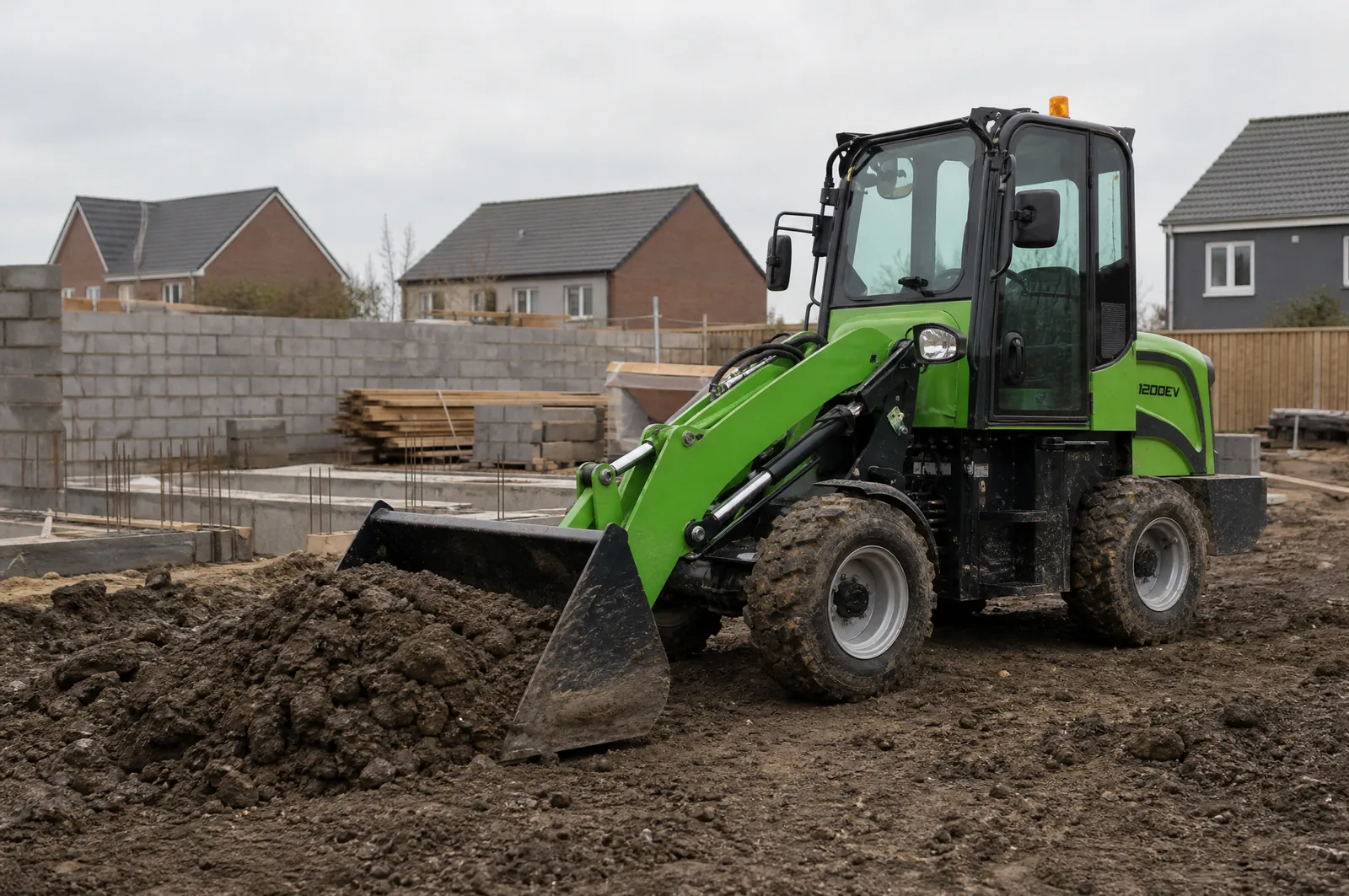

1200EV in service. More photographs below.
1200EV in service
Representative environments for this class of machine. Photographed on location, not in a studio.
Specification
| Model | 1200EV |
|---|---|
| Standard designation | WL1200EV |
| Rated capacity | 1200kg |
| Bucket capacity | 0.3m³ |
| Dump height | 2400-2700mm |
| Reach at full height | 802mm |
| Operating weight | 2306kg |
| Battery chemistry | LiFePO4 (lithium iron phosphate) |
| Battery capacity | 28kwh |
| Battery voltage | 76.8 V |
| Runtime per charge | 6-8h |
| Charger | 87.6 V 80 Ah |
| Charger input | 380V |
| Charge time | 4h |
| Transmission | Full-time 4WD, motor-driven transmission |
| Gear ranges | 4 electronic ranges, 1 forward / 1 reverse, with transport range |
| Axle | Isuzu axle, disc brake |
| Max speed | 24km/h |
| Cycle time (lift–lower–tip) | 9s |
| Tyres | 12.5-16 |
| Turning radius | 2464mm |
| Ground clearance | 204mm |
| Wheelbase | 1832mm |
| Track width | 1340mm |
| Steering angle | 32° |
| Dimensions (L × W × H) | 4135*1600*2550mm |
Figures are the standard build. Mast, fork length, attachment, battery and paint are fixed at order; anything not on this table is quoted rather than assumed.
What 1200EV is bought for
1,200 kg. The volume electric loader. Bought for yards that run a fixed route and can charge at the same point every shift.
If the load is consistently heavier than 1200 kg, the next frame up carries the same mast and fork family, so the attachment and spare-parts stock do not have to change. If the load is lighter but the access is the constraint, the frame below is the one that fits through the door — capacity is rarely the only variable.
The size above and below
1500EV · 1500 kg
Electric Wheel Loader 1500 kg
1,500 kg. Bought where the diesel equivalent would be a 3 t wheel loader and the duty cycle is short and repetitive.
Compare 1200EV vs 1500EVWear parts for 1200EV
The parts that fail first on this class, with the interval we see in the field.
Customer feedback
We publish feedback only with the buyer's permission and only when it is attributable — no anonymous quotes. If you would like to speak to someone running this class of machine, ask for a reference and we will arrange the call with their consent.
Quote for 1200EV
Send the load, the lift height and the destination port. You get the model, the mast, the attachment and a written price.
