1200EV · 1200 kg
Electric Wheel Loader 1200 kg
1,200 kg. The volume electric loader. Bought for yards that run a fixed route and can charge at the same point every shift.
Compare 1500EV vs 1200EV
1500EV · Electric Wheel Loader
1500EV — 1500 kg Electric Wheel Loader
1,500 kg. Bought where the diesel equivalent would be a 3 t wheel loader and the duty cycle is short and repetitive.
1500 kg
Capacity
3089mm
Turning radius

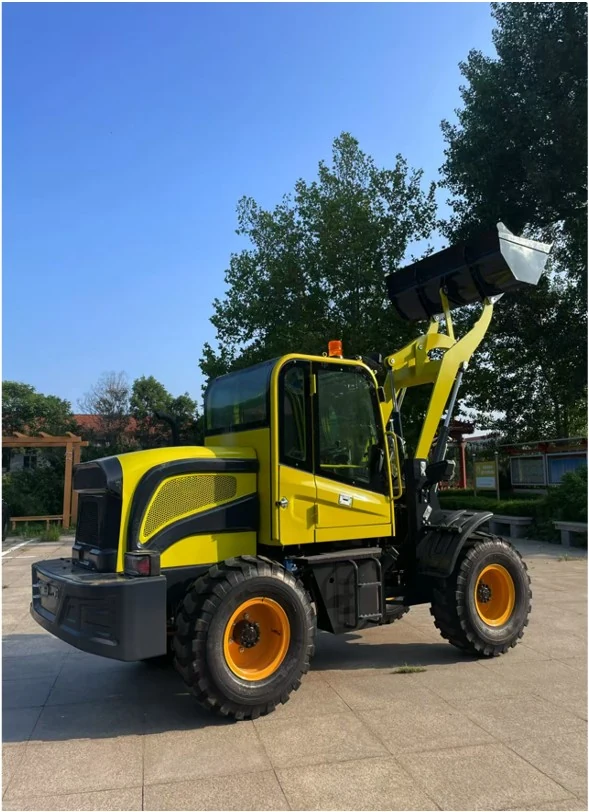

1500EV — factory photograph of the actual unit.
Specification
| Model | 1500EV |
|---|---|
| Standard designation | WL1500EV |
| Rated capacity | 1500kg |
| Bucket capacity | 0.55m³ |
| Dump height | 3140mm |
| Reach at full height | 802mm |
| Operating weight | 2800kg |
| Drive motor | 10 kW |
| Hydraulic motor | 13 kW |
| Battery chemistry | LiFePO4 (lithium iron phosphate) |
| Battery capacity | 36kwh |
| Battery voltage | 80V |
| Runtime per charge | 6-8h |
| Charger | 80 V 60 A |
| Charger input | 380V |
| Charge time | 6h |
| Transmission | Full-time 4WD, motor-driven transmission |
| Gear ranges | 4 mechanical ranges, 1 forward / 1 reverse, with transport range |
| Axle | Isuzu axle |
| Max speed | 19km/h |
| Cycle time (lift–lower–tip) | 10s |
| Tyres | 12.5-16 |
| Turning radius | 3089mm |
| Ground clearance | 310mm |
| Wheelbase | 2210mm |
| Track width | 1600mm |
| Steering angle | 35° |
| Dimensions (L × W × H) | 5060*1700*2645 |
Figures are the standard build. Mast, fork length, attachment, battery and paint are fixed at order; anything not on this table is quoted rather than assumed.
What 1500EV is bought for
1,500 kg. Bought where the diesel equivalent would be a 3 t wheel loader and the duty cycle is short and repetitive.
If the load is consistently heavier than 1500 kg, the next frame up carries the same mast and fork family, so the attachment and spare-parts stock do not have to change. If the load is lighter but the access is the constraint, the frame below is the one that fits through the door — capacity is rarely the only variable.
The size above and below
2000EV · 2000 kg
Electric Wheel Loader 2000 kg
2,000 kg. The largest electric loader in the range. The charging window is the specification decision, not the capacity.
Compare 1500EV vs 2000EVWear parts for 1500EV
The parts that fail first on this class, with the interval we see in the field.
Customer feedback
We publish feedback only with the buyer's permission and only when it is attributable — no anonymous quotes. If you would like to speak to someone running this class of machine, ask for a reference and we will arrange the call with their consent.
Quote for 1500EV
Send the load, the lift height and the destination port. You get the model, the mast, the attachment and a written price.
